N-Type TOPCon PV Modules
Unmatched Quality Ultimate Efficiency
N-Type TOPCon isn't just an upgrade — it's a rethink of how solar panels should perform. ADM Solar's N-Type TOPCon Modules are built to deliver more power, lose less energy over time, and outlast conventional P-Type panels by a significant margin. With lower degradation rates and superior performance in real-world conditions — including high temperatures and low light — these modules work harder, for longer. We offer one of the widest wattage ranges available, making it easy to find the right module for any project — from rooftop systems to large-scale solar farms.
Next Gen N-Type PV
Technology

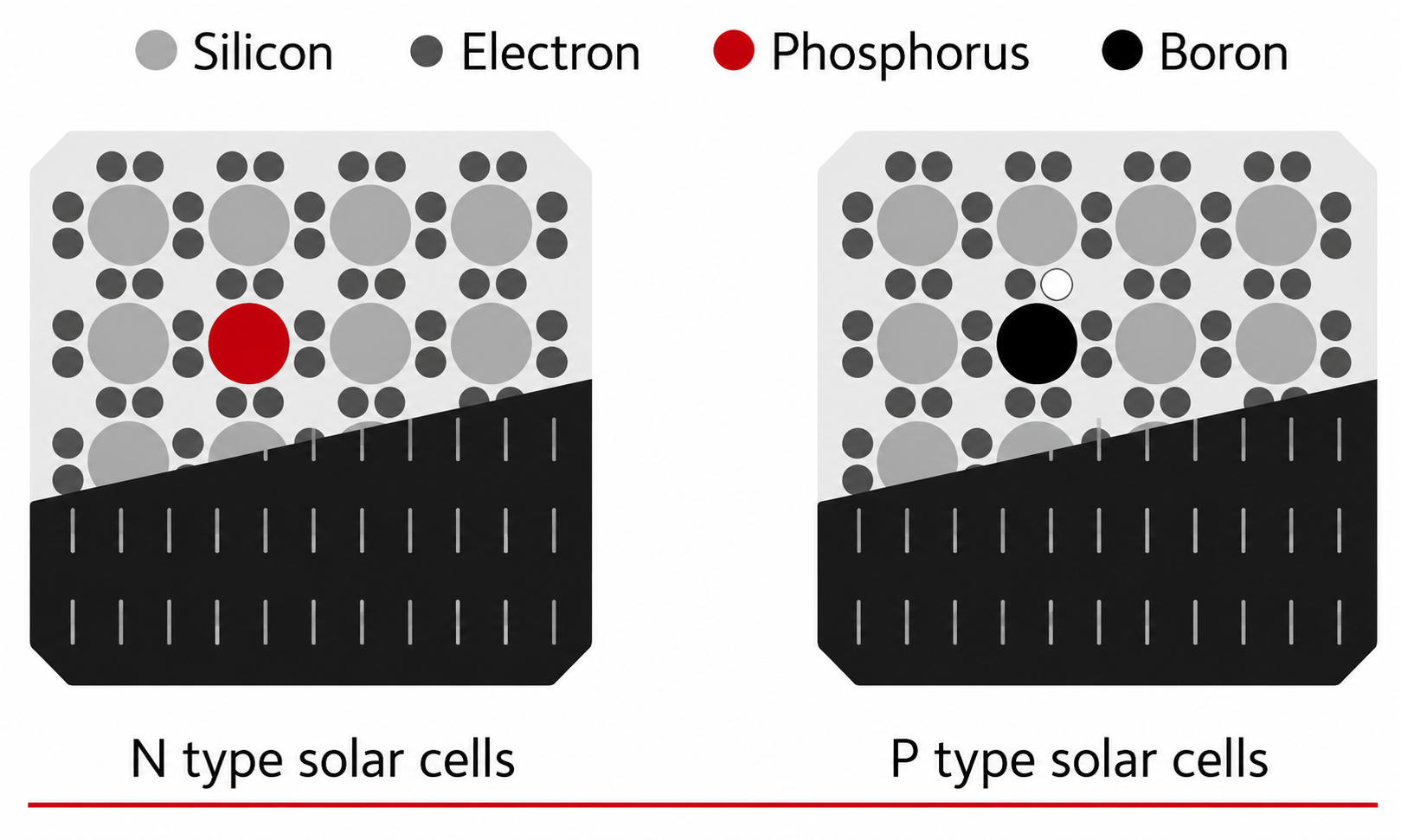

In P-type solar cells, the silicon base layer is doped with boron, creating positive charge carriers known as electron holes. In contrast, N-type solar cells use phosphorus-doped silicon, which produces free electrons as the primary charge carriers. This enables better conductivity, lower energy loss, and higher overall efficiency.
520Wp - 550Wp
DCR & Non - DCR
132 G-12R
Topcon Cells
16BB N-Type
Cell Technology
21.50%
Max Efficiency
80 ± 10%
Bifaciality Factor
| Model Series | ADMTGG640 |
|---|---|
| Maximum Power – Pmax (Wp) | 640 |
| Maximum Power Voltage – Vmpp (V) | 41.00 |
| Maximum Power Current – Impp (A) | 15.62 |
| Open Circuit Voltage – Voc (V) | 49.13 |
| Short Circuit Current – Isc (A) | 16.04 |
| Module Efficiency (%) | 23.61 |
| Fill Factor (FF) | 81.21 |
| Model Series | ADMTGG640 |
|---|---|
| Maximum Power – Pmax (Wp) | 709.12 |
| Maximum Power Voltage – Vmpp (V) | 41.00 |
| Maximum Power Current – Impp (A) | 17.30 |
| Open Circuit Voltage – Voc (V) | 49.13 |
| Short Circuit Current – Isc (A) | 17.77 |
| Module Efficiency (%) | 26.16 |
520Wp - 550Wp
DCR & Non - DCR
144 M10
TOPCon Cells
16BB N-Type
Cell Technology
21.50%
Max Efficiency
80 ± 10%
Bifaciality Factor
| Model Series | ADMTGG590 | ADMTGB590 |
|---|---|---|
| Maximum Power – Pmax (Wp) | 590 | 590 |
| Maximum Power Voltage – Vmpp (V) | 44.63 | 44.63 |
| Maximum Power Current – Impp (A) | 13.22 | 13.22 |
| Open Circuit Voltage – Voc (V) | 51.14 | 51.14 |
| Short Circuit Current – Isc (A) | 13.88 | 13.88 |
| Module Efficiency (%) | 22.86 | 22.86 |
| Fill Factor (FF) | 83.81 | 83.81 |
| Maximum Power – Pmax (Wp) | 653.72 | 653.72 |
| Maximum Power Voltage – Vmpp (V) | 44.63 | 44.63 |
| Maximum Power Current – Impp (A) | 14.65 | 13.52 |
| Open Circuit Voltage – Voc (V) | 51.14 | 51.14 |
| Short Circuit Current – Isc (A) | 15.25 | 15.25 |
| Module Efficiency (%) | 25.34 | 25.34 |
Why ADM Solar
Manufacturing Excellence
800 MW fully automated facility with 50+ stringent quality checks ensuring consistent performance.
Proven Reliability
Entrusted by leading quality, compliance, and audit agencies, with a 100% on-time delivery track record and strong lead-time advantage.
Strong Portfolio & Growth
Comprehensive and diversified product portfolio backed by 10X year-on-year growth since inception.
High Value & Support
Competitive pricing for superior ROI, trusted by top EPC players, with 100% assured after-sales service.

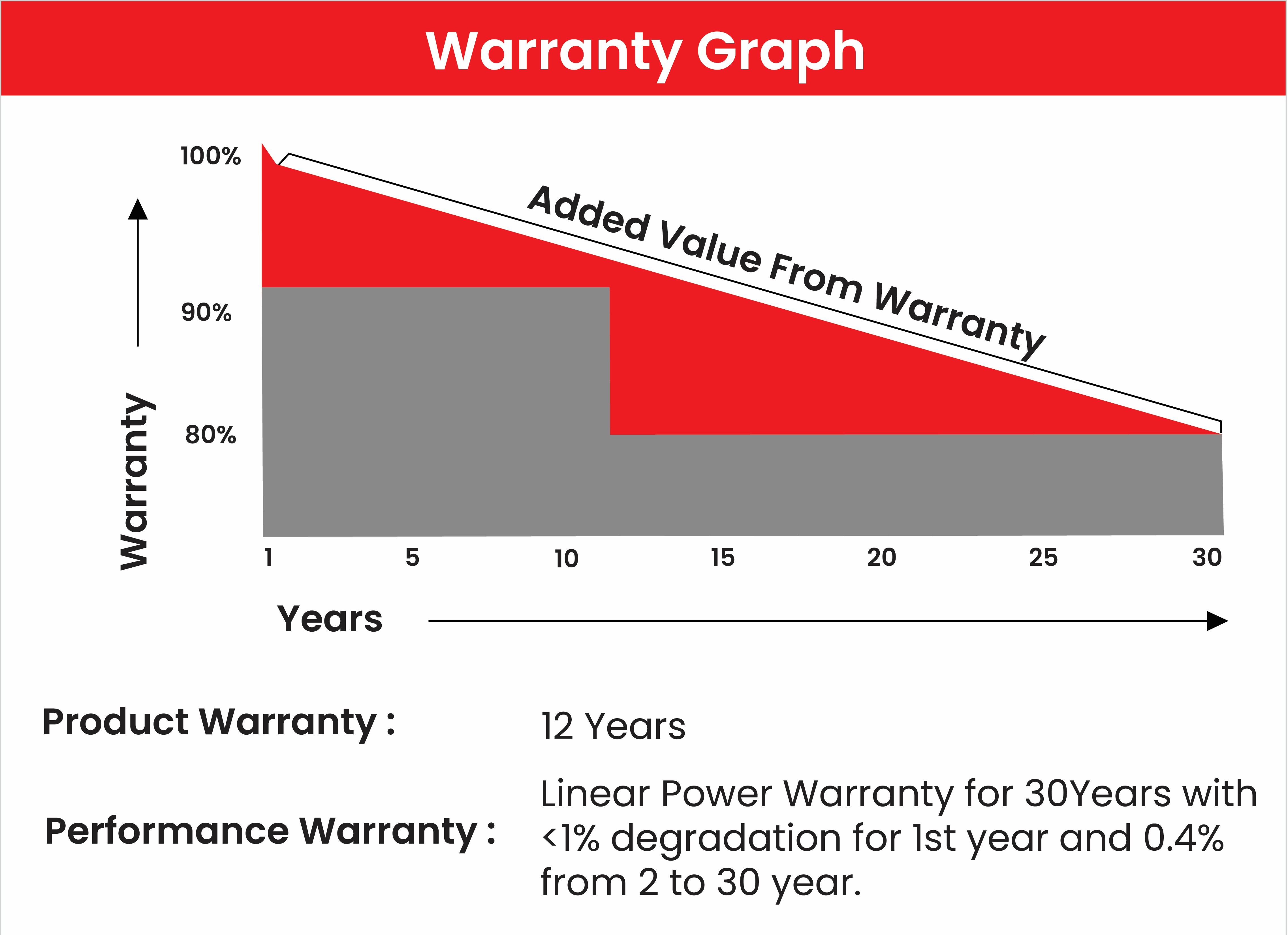

N-Type TOPCon
For Lower Degradation
The N-type TOPCon module has lower LID (Light Induced Degradation) and LeTID (Light and elevated Temperature Induced Degradation). It significantly reduces the degradation rate, ensuring more power generation over the module's lifetime.
![[object Object]](/images/products/ntype-warranty-graph.jpg)
Round Ribbons for
Enhanced Light Absorption
The round ribbon reduces the shading area and repeatedly reflects the light to the cell, improving the power generation efficiency by about 1-2% compared to the flat ribbon.
![[object Object]](/images/products/ntype-round-ribbions.png)
NDC Technology for
Reduced Mechanical Stress
The non-destructive cutting technology minimizes the micro-cracks during the cell cutting process. Thus providing excellent mechanical load performance and higher resistance to physical stress.
![[object Object]](/images/ntype/ntype-ndc-technology.png)
